The Sunsynk 5kW 48V 8kWh Self-Consumption Kit is a robust solar energy solution designed for self-consumption applications in homes and small businesses. This kit includes a 5kW hybrid inverter, paired with a 48V battery system totaling 8kWh, which enables effective energy storage and usage management. Here's a detailed breakdown of the kit's features and benefits:

Key Features:

1. 5kW Sunsynk Hybrid Inverter:

   • Power Capacity: 5kW, sufficient to power essential household appliances or small office equipment.
   • Voltage: Operates on a 48V DC battery bank, which is safer and more efficient for energy storage.
   • Smart Management: Enables real-time monitoring and control, providing insights into consumption, production, and battery status.
   • Grid and Generator Compatibility: Functions with or without grid power, making it ideal for both off-grid and grid-tied setups.
   • Battery Management System (BMS): Offers high battery life by balancing charge cycles and protecting against overcharging or deep discharge.

2. 8kWh Lithium Battery Pack:

   • High Capacity: The 8kWh storage allows for extended power backup, ideal for load-shedding or power outages.
   • Lithium-Iron Phosphate (LiFePO4): Known for durability and safety, these batteries have a longer life cycle and are safer than other lithium-ion types.
   • Depth of Discharge (DoD): Allows for efficient use of stored energy without excessive wear on the battery.
   • Low Self-Discharge Rate: Retains charge effectively even when stored for longer periods.

3. Self-Consumption Optimization:

   • Energy Priority: Prioritizes the use of solar energy, reducing reliance on grid power and lowering utility bills.
   • Load-Shifting: Automatically switches to battery power during peak hours, maximizing efficiency and reducing electricity costs.
   • Automatic Backup: Seamless transition to battery power during outages.

4. Expandable and Modular:

   • Scalability: Easily expandable to increase storage capacity or integrate more solar panels for greater power generation.
   • Compatibility: Works with most solar panel arrays, allowing for flexible system design.

Benefits:

• Energy Independence: Reduces dependency on the grid, providing reliable power even during outages.
• Cost Savings: Optimizes solar self-consumption, reducing electricity bills by using stored energy during peak times.
• Eco-Friendly: Lowers carbon footprint by harnessing renewable solar energy.
• Easy Installation and Maintenance: User-friendly design with straightforward installation and minimal maintenance requirements.

Ideal Applications:

• Residential Homes: Particularly beneficial for homes in areas with frequent power outages or high electricity costs.
• Small Businesses: Great for small offices, retail spaces, or clinics needing reliable power to operate essential equipment.

The Sunsynk 5kW 48V 8kWh Self-Consumption Kit is a comprehensive solution, providing reliable, efficient, and eco-friendly power to meet diverse energy needs.

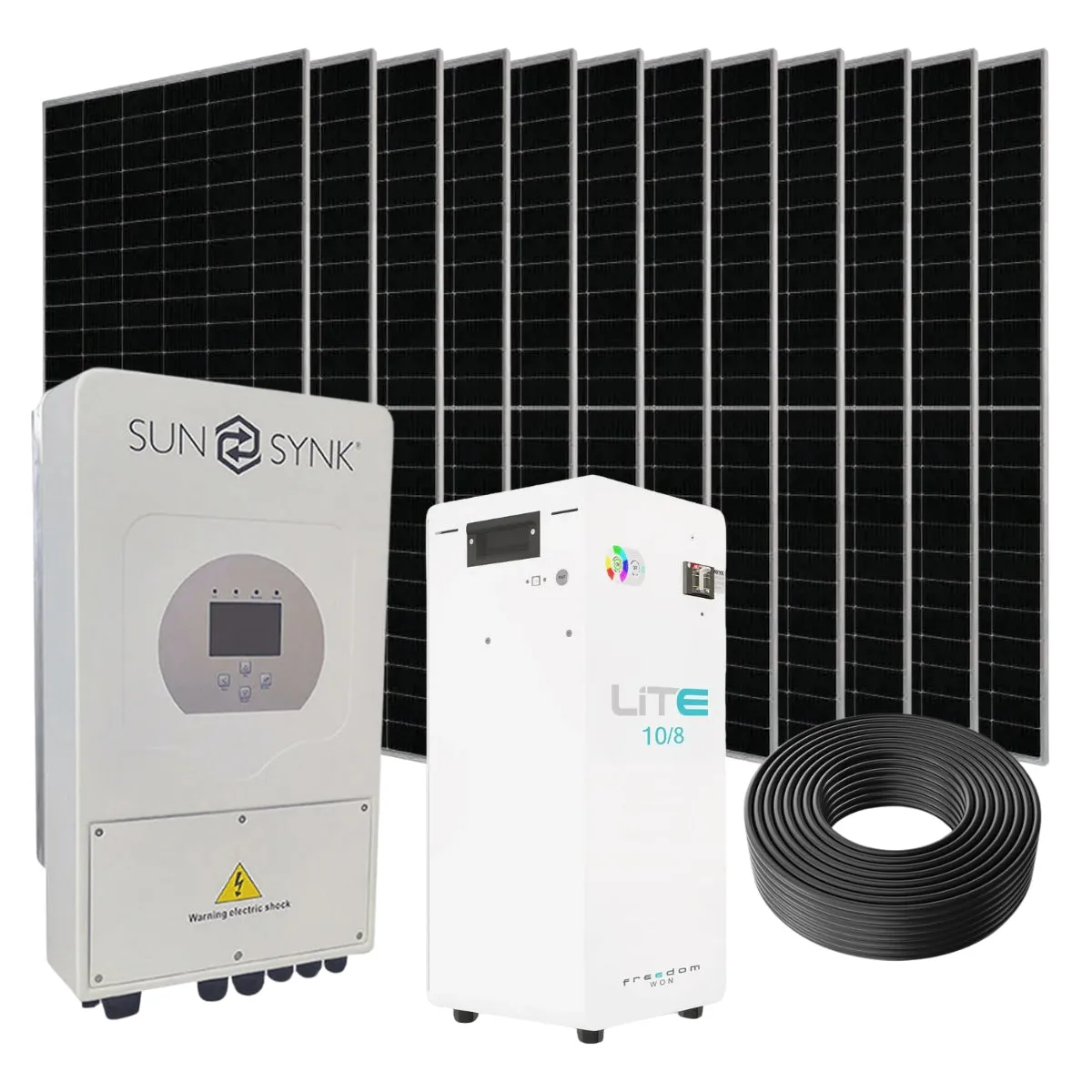

This kit consist of the following:

• 12 x JA Solar 505W Mono PERC Half-Cell MBB Silver Frame Solar Panel
• 1 x SunSynk 5KW 48V Hybrid Inverter
• 1 x Freedom Lite Home 10-8 Lithium LiFePO4 Battery
• 1 x 600V Protection Box 2 Inputs 2 Outputs 16A Isolator Type I_II SPD
• 1 x Earth Neutral Bridge 25A AC Protection Box
• 1 x PROJOY 63A Three-Phase Change Over Switch
• 1 x Eaton Bussmann KETO-1 Battery Disconnector with 160A Fuses
• 1 x 50m 4mm² single-core PV DC cable - Black
• 1 x PV on Roof and Hazard Labels Pack
• 2 x MC4 Pre terminated cable 2m
• 2 x MC4-EVO2 Connector Twin Pack
• 3 x K&N 40A Single Phase AC Switch Disconnector

JA Solar 505W Mono PERC Half-Cell MBB Silver Frame Solar Panel

• Rated Maximum Power (Pmax) [W]: 505
• Open Circuit Voltage (Voc) [V]: 45.72
• Maximum Power Voltage (Vmp) [V]: 38.53
• Short Circuit Current (Isc) [A]: 14.00
• Maximum Power Current (Imp) [A]: 13.11
• Module Efficiency [%]: 21.3
• Power Tolerance: -0~ 5W
• Temperature Coefficient of ISCA: -0.045%
• Temperature Coefficient of VC:-0.275%
• Temperature of coefficient of Pmax: -0.350%
• STC Irradiance 1000 W/m2, cell temperature 25C, AM 1.5G

Sunsynk 5kW 48V Single Phase Hybrid Inverter

• Max. DC Input Power: 6500W
• PV Input Voltage: 370V (125V~500V)
• MPPT Range: 150~425V
• Full Load DC Voltage Range: 300~425V
• Start-up Voltage: 125V
• PV Input Current: 13Ad.c 13Ad.c
• No. of MPPT Trackers: 2
• No. of Strings Per MPPT Tracker: 1 1

Storage - Freedom Won Lite Home 10/8 LiFePO4 Battery

• System Type: Full Hybrid.
• Type of Battery: Lithium Ion.
• Usable Battery Capacity: 10000 Wh.
• Voltage: 48 V.
• Max Charge Rate (5 Minutes): 10000 W.
• Max Discharge Rate (5 Minutes): 15000 W.
