Precision engineered, max efficiency, designed to be lightweight, easy to setup, yet packs a punch! From when you open the box, every thing has been designed with meticulous detail. You will not be disappointed - moreso at this price point!

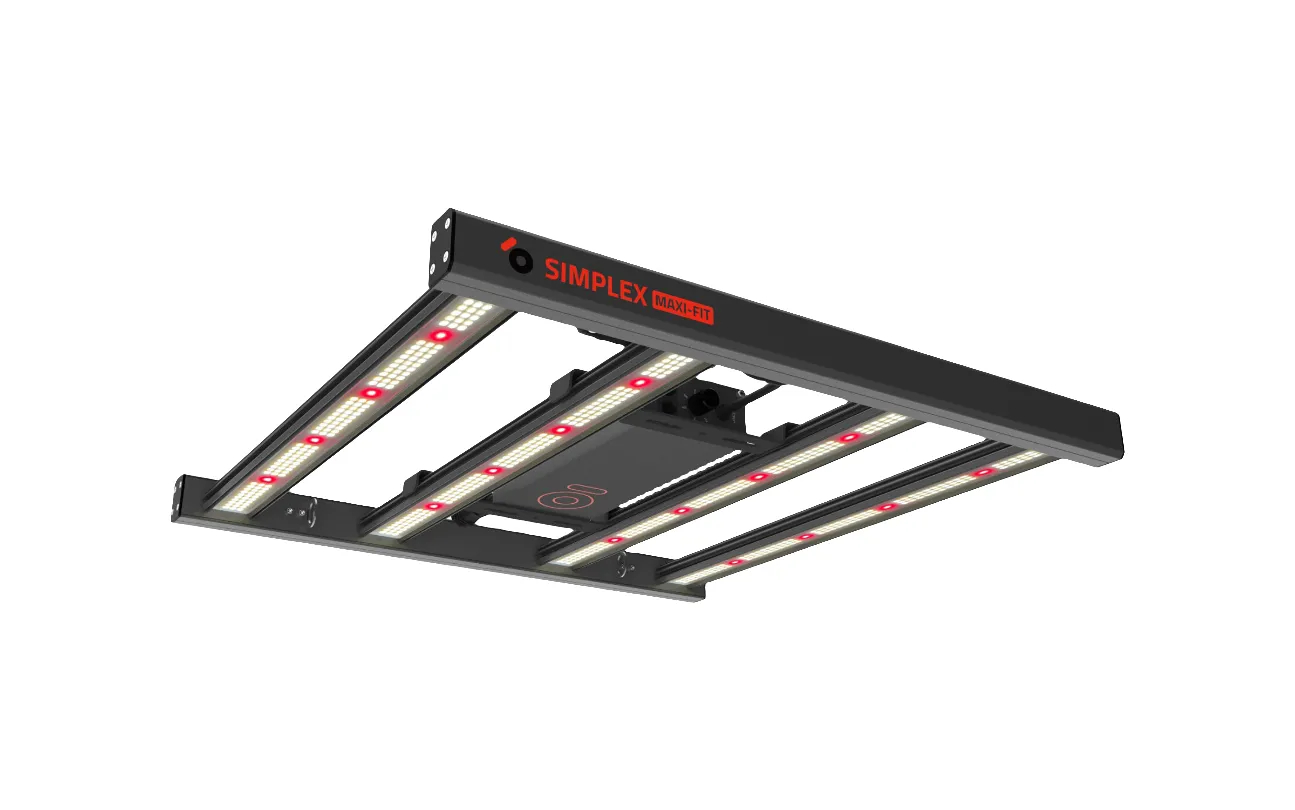

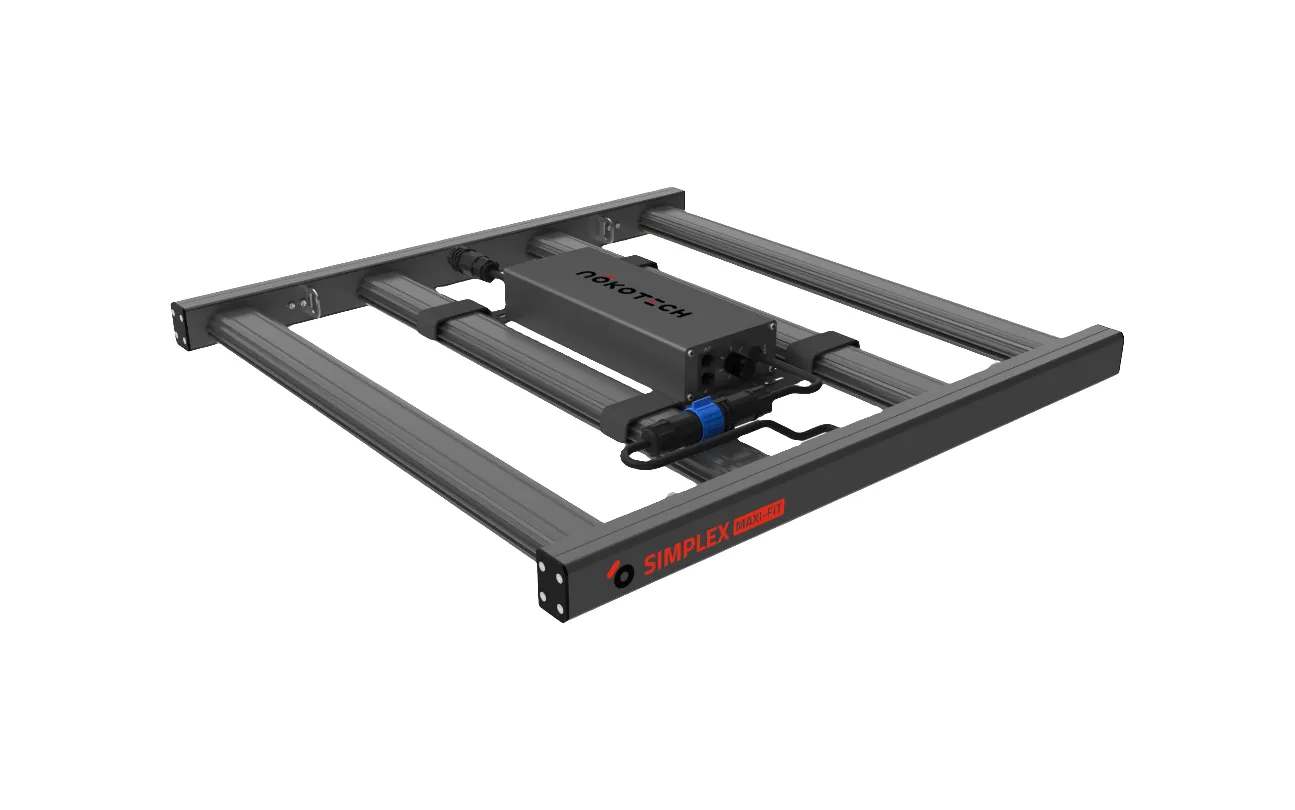

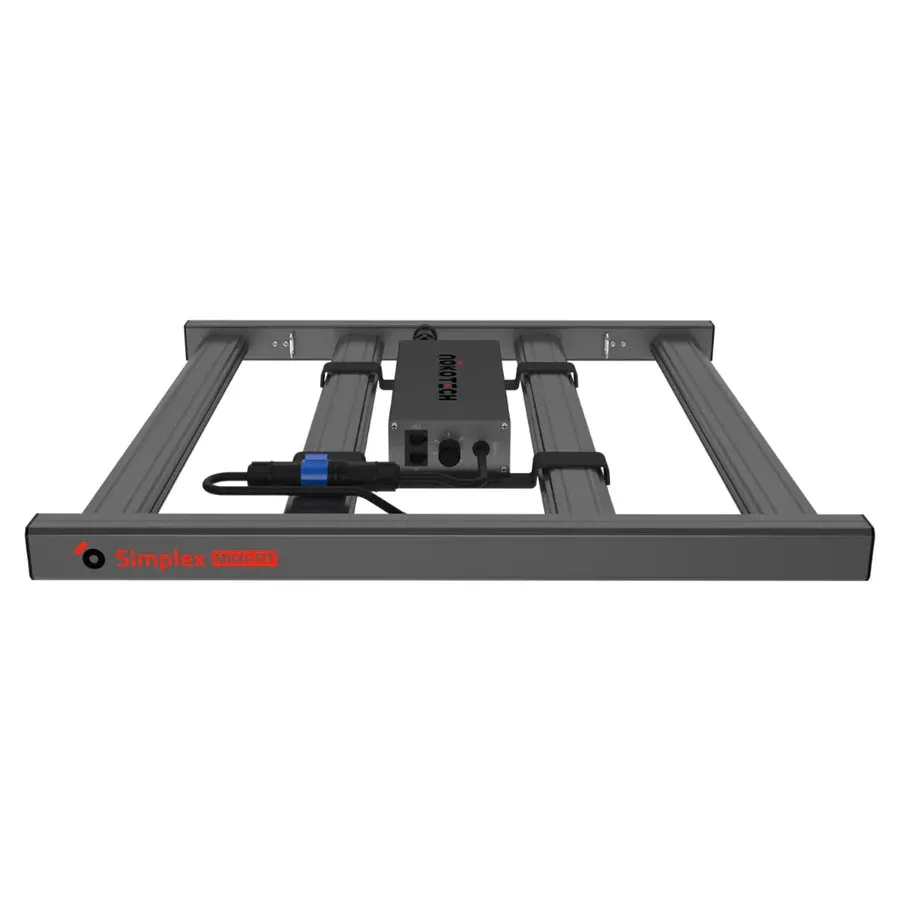

The Nokotech Simplex MAXI is a compact 240W LED grow light with a 4-bar high-performance and high-efficiency. It uses premium Osram LEDs and a 240W LED driver. This fixture's balanced, full-spectrum output is ideal for small-scale indoor growing.
Technical specifications
|
MAX POWER
|
240W |
|
INPUT VOLTAGE
|
200 - 240V |
|
INPUT CURRENT
|
1.26A @ 200Vac / 1.05A @ 240Vac |
|
DIMMING
|
Knob or 0-10V controller |
|
POWER FACTOR
|
> 0.9 |
|
MAX AMBIENT TEMPERATURE
|
35°C / 95°F |
|
SPECTRUM
|
Full spectrum |
|
MAX PPF
|
668 μmol/s |
|
EFFICACY
|
2.8 μmol/j |
|
LEDs
|
San'an and Osram |
|
LEDs COUNT
|
784 (White) and 16 (Red) |
|
COVERAGE AREA
|
60 x 60 cm |
General specifications
|
DIMENSIONS (L.W.H)
|
500 x 500 x 35 mm / 19.7 x 19.7 x 1.38 in |
|
NET WEIGHT
|
1.7 kg / 3.75 lbs |
|
WARRANTY
|
3 years |
- Easy installation & small size
- Only 1.7 kg (3.75 lbs)!
- 500 x 500 x 35mm
- Full-spectrum light output
- Max PPF 668mmol/s
- High efficacy - 2.8 mmol/j
- Supports daisy chain using RJ cables
- Remote control using 0-10 Controllers
The NOKOTECH Range
Horticulture led lights are the most popular choice among growers because of their high efficiency, low heat output, and durability. NOKOTECH offers a variety of LED lighting options for home gardeners and industrial growers.
Simplex MAXIFIT is a 4-bar, LED grow light for hobbyists. It's known for its high performance and efficiency. This LED grow lamp measures 50x50cm, which makes it ideal for tents and small spaces. It is equipped with Osram LEDs and San'an, and powered by a high-end 240W driver.
Simplex MAXIFIT is a small grower's favourite, as it weighs only 1.7 kg with the 240W LED driver. It offers a balanced spectrum output and high PPF (668umol/s) and PPE (2.8umol/J). The light can be daisy chained and controlled by any controller with a 0-10V voltage.
CONNECTIVITY & CONTROL
Simplex MAXIFIT is equipped with an advanced LED driver that offers multiple control options. The dimming knob provides four brightness levels: 25%, 50% 75% and 100%.
Daisy-chaining is supported by the fixture for a broader range of control. Growers can achieve precise and synchronised control of their entire setup by connecting up to fifty fixtures using RJ cable and any 0-10V Controller (such as TrolMaster and the

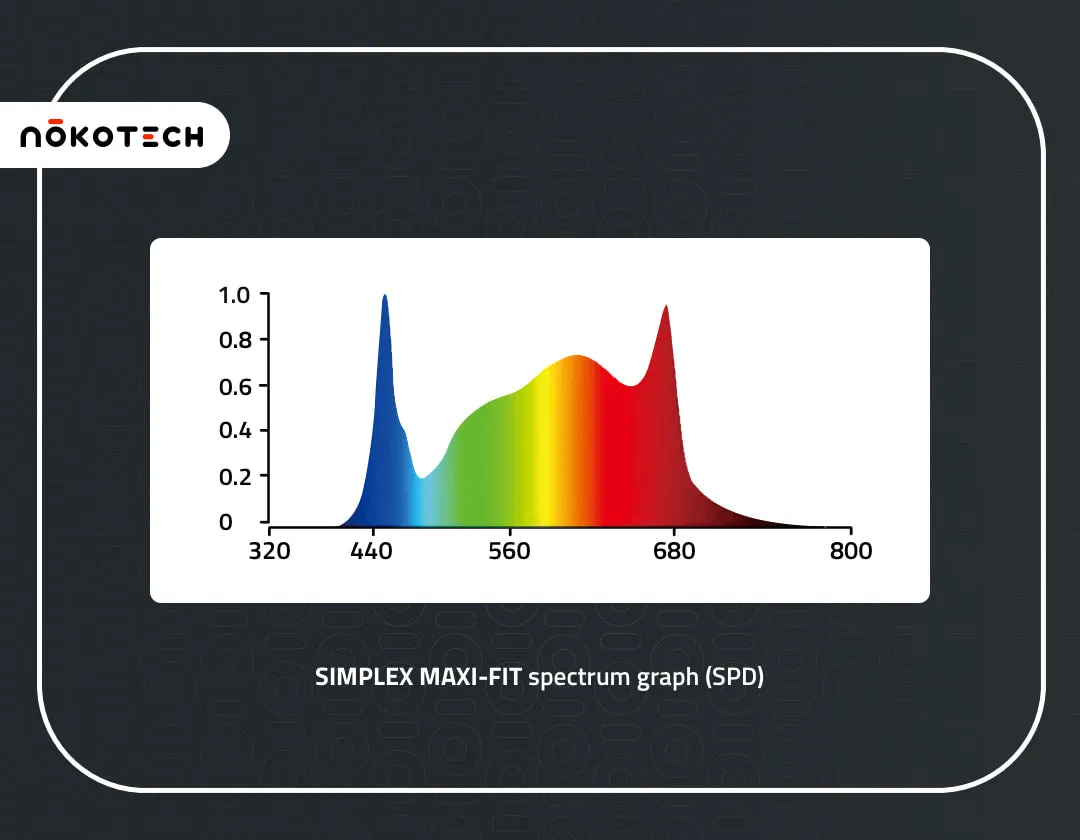

SPECTRUM AND PFD

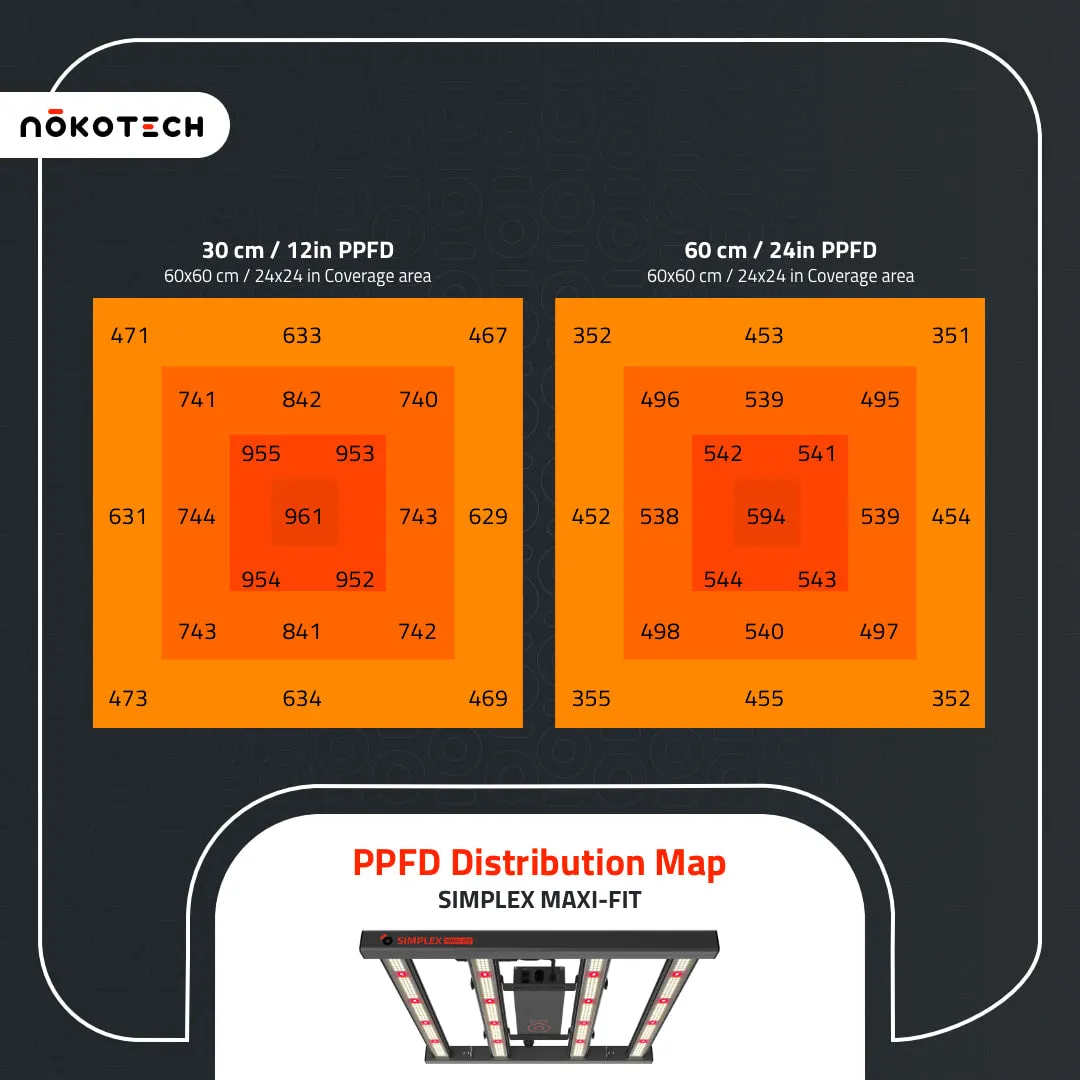

The fixture, which uses a high-end 240W LED driver, will produce more than 700 PPFD in average PAR light intensity over your plants. This is at a height of 30 cm (12 inches) from the canopy and an area 60x60.
Simplex MAXIFIT fixture uses highly efficient San'an LEDs (white) and Osram LEDs (red) to create a full spectrum light that is best suited for photosynthesis at all growth stages.
Simplex MAXIFIT horticulture led fixture is only designed for indoor use, and suitable for climate controlled indoor farms or grow rooms. The fixture is designed to provide a full spectrum of light for small-scale horticulture, from vegetative growth through to blooming.
