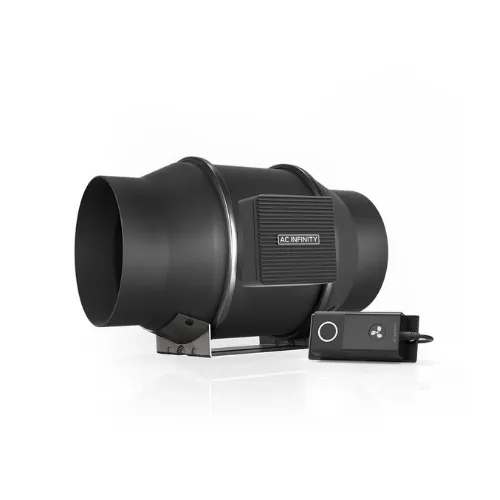

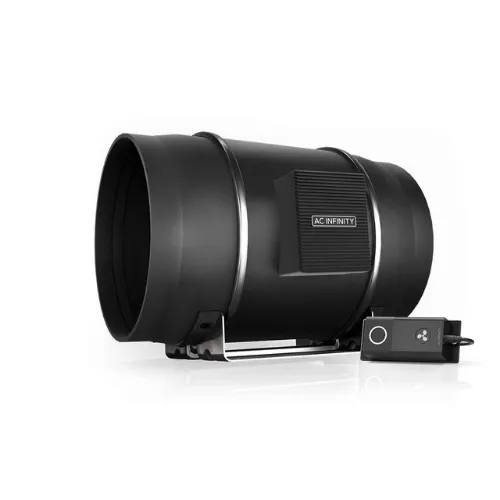

AC Infinity Cloudline Pro EC Fan S-series

AC Infinity Cloudline Pro EC Fan S-series

$ 95.99

$ 0.00

Save: $

Size:
  • 4348m3h
  • 6683m3h
  • 81371m3h
  • 102040m3h
Unavailable
Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

The one and only. AC Infinity fans. Energy-efficient, quiet AF and value for money. These S-series have a manual 8-speed controller

  • Features an 8-speed manual controller utilizing PWM. .

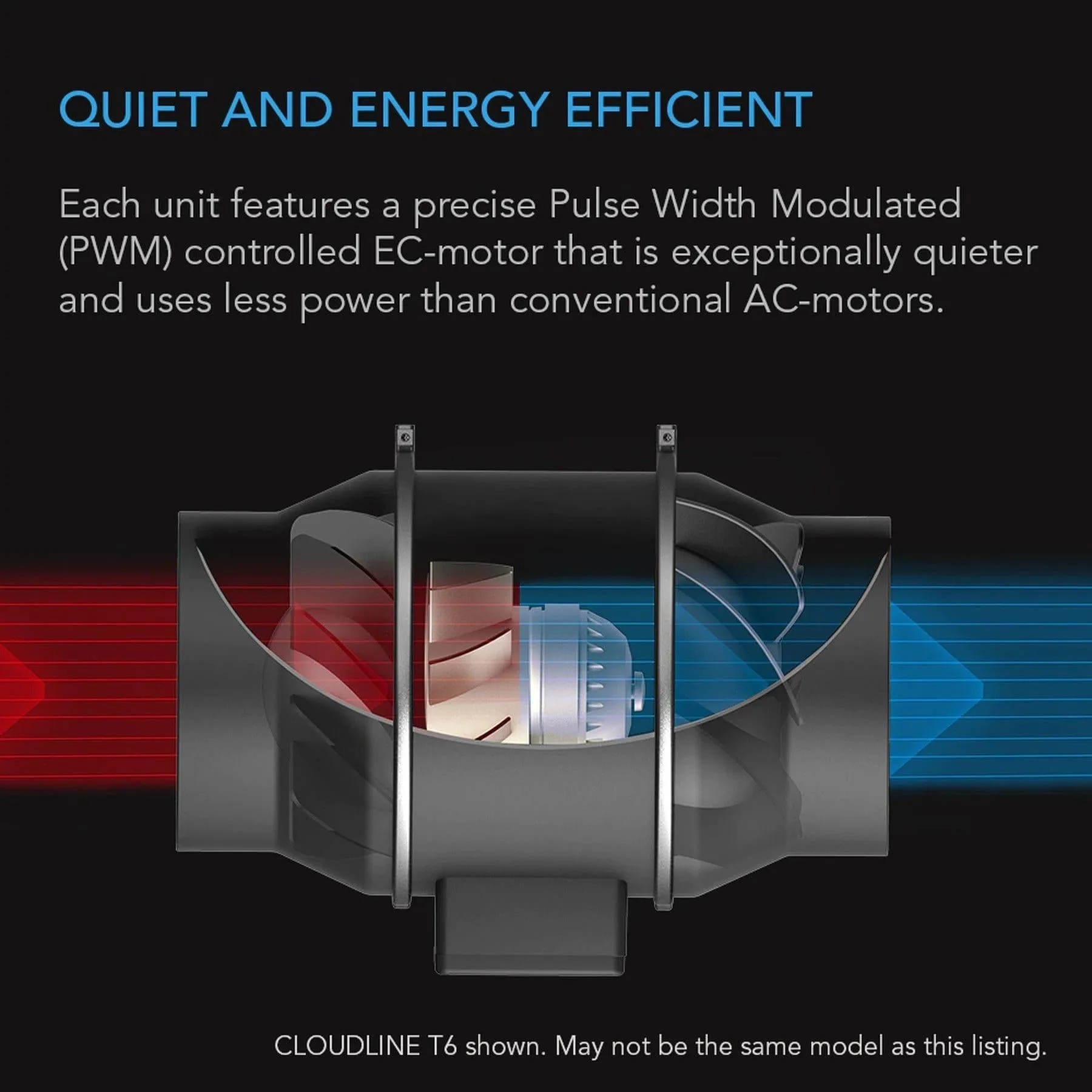

  • Mixed flow design combined with a PWM-controlled EC motor for a truly quiet and energy-efficient performance.
  • Kit also includes a corded AC power adapter, an installation manual, and all necessary mounting hardware.

LOOKING FOR A COMPLETE AC INFINITY EXTRACTION BUNDLE?

Features an inline speed controller utilizing PWM (Pulse Width Modulation) technology. Contains an EC motor for quiet and energy-efficient performance. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. The complete kit includes one duct fan unit, one inline speed controller, an installation manual, all necessary mounting hardware, and all necessary mounting hardware.

PRECISE SPEED CONTROLLER

The inline speed controller enables you to set the duct fan’s speed to optimal noise and airflow levels for various environments. Unlike common AC-powered duct fans that suppress voltage to control fan speeds, this duct fan features an EC-motor that is precisely controlled using PWM (Pulse Width Modulation).

This technology enables the fan's motor to be able to run smoothly at extremely low RPM speeds without generating motor noises and heat as seen on variable voltage controllers.

Eight-speed options are available with a power switch, and backup memory.

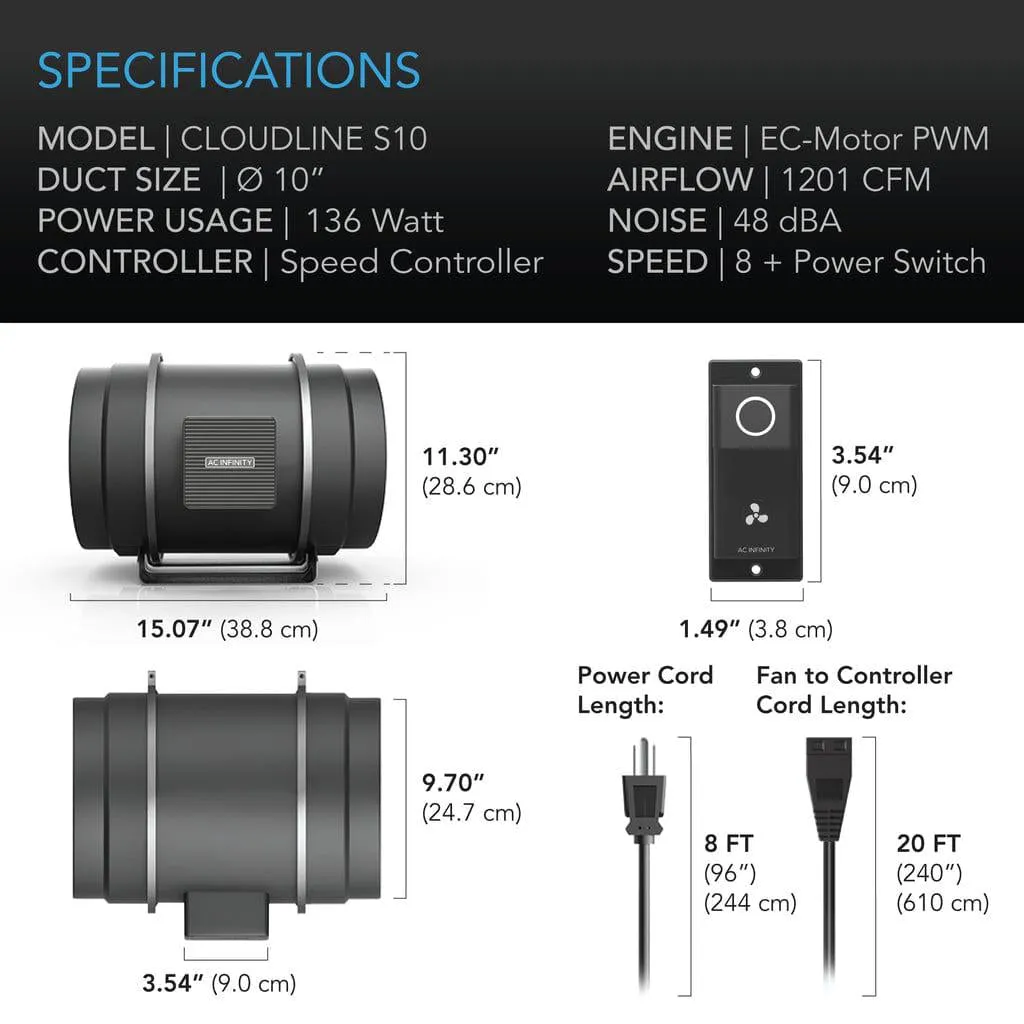

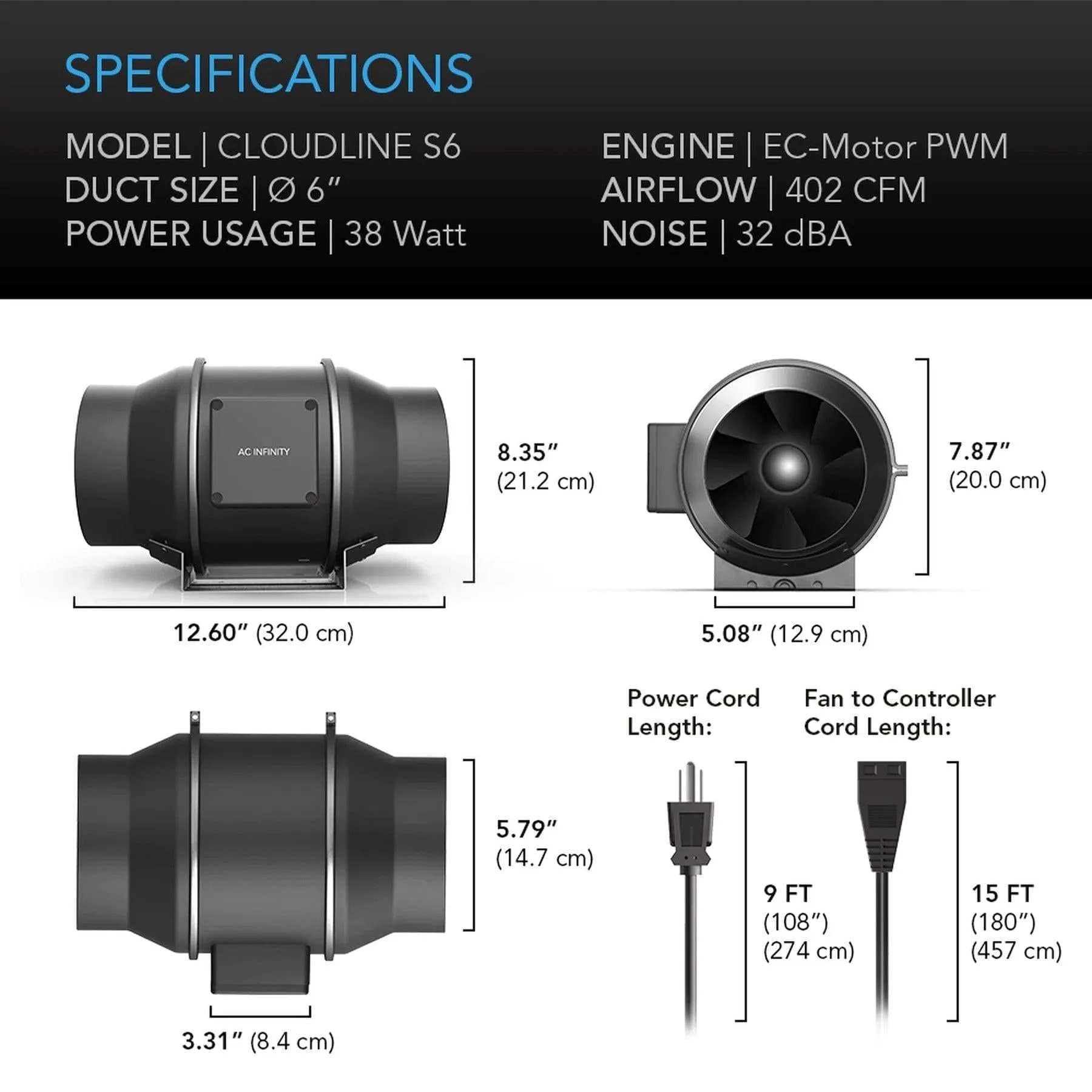

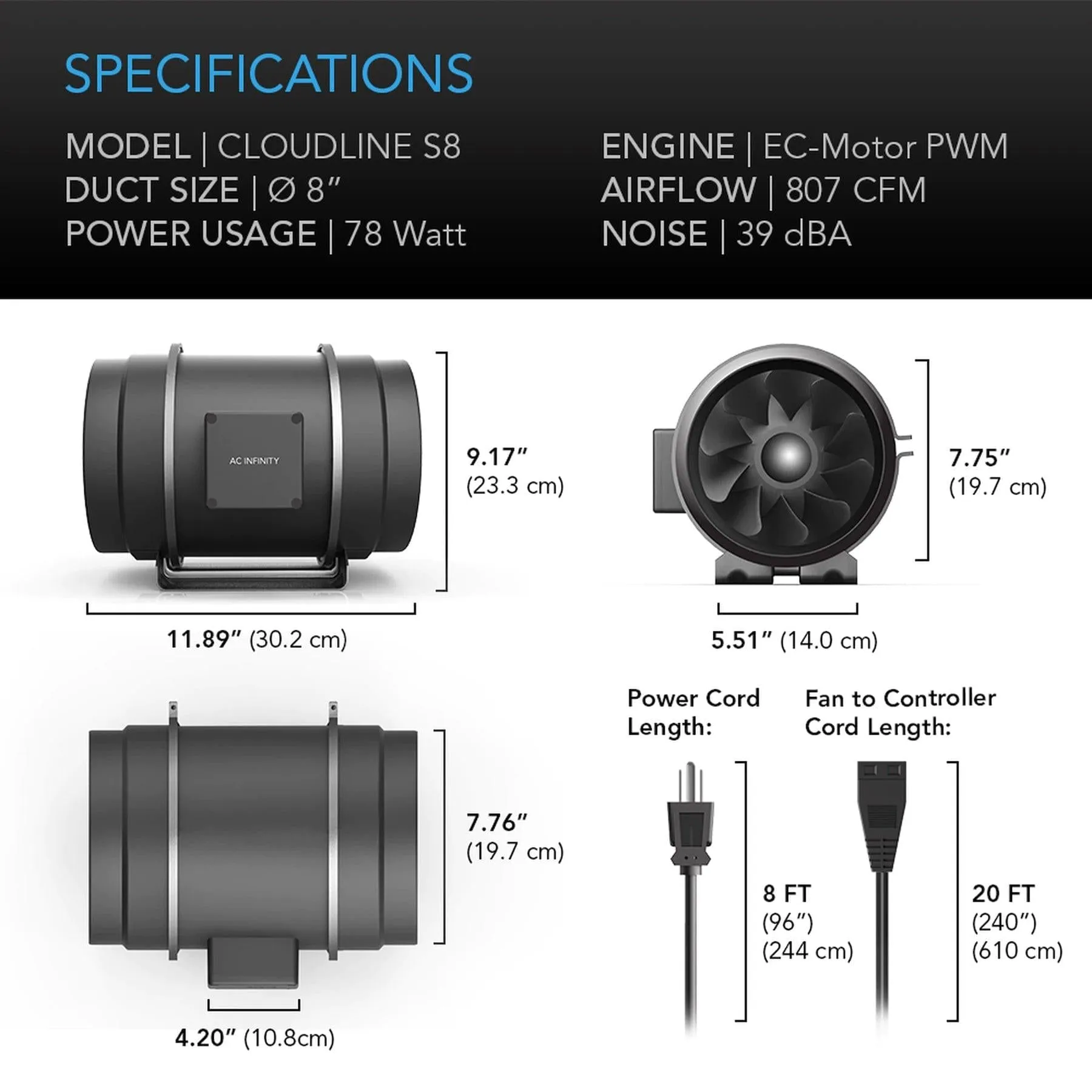

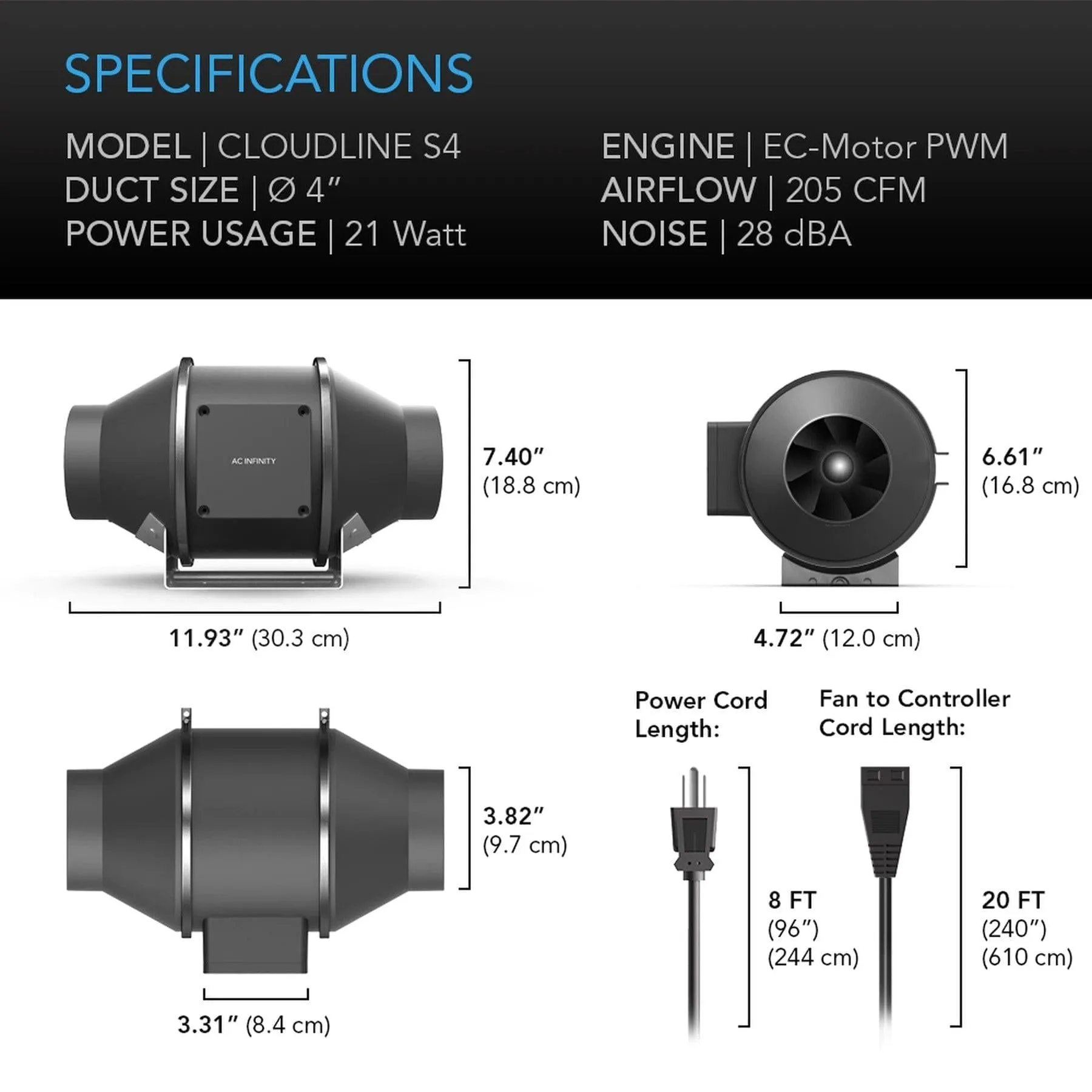

Product Name CLOUDLINE S4 CLOUDLINE S6 CLOUDLINE S8 CLOUDLINE S10
Product Model AI-CLS4 AI-CLS6 AI-CLS8 AI-CLS10
Duct Size 4" 6" 8" 10"
Total Airflow 348.29m3/h 683m3/h 1371m3/h 2040m3/h
Fan Dimensions 18.8 x 30.3 x 17.6 cm 21.2 x 32.0 x 20.0 cm 21.7 x 30.2 x 12.3 cm 24.9 x 38.6 x 28.6 cm
Total Noise 28 dBA 32 dBA 39 dBA 48 dBA
Cord Length to Controller 240 in 180 in 240 in 240 in
Cord Length to Plug 96 in 108 in  96 in.   96 in.
Static Pressure 223 Pa 503 Pa 746 Pa 352 Pa
Max Power Draw 28 W 64 W 110 W 250 W
Average Power Usage 21 W 38 W 78 W 136 W
Current 1.2 A 1.67 A 2.27 A 2.7 A
